5um PP Capsule Filter  Disposable Lab
5um PP Capsule Filter  Disposable Lab
5um PP Capsule Filter  Disposable Lab
5um PP Capsule Filter  Disposable Lab

5um PP Capsule Filter Disposable Lab

Payment Type: L/C,T/T,D/P,Paypal,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 25 Piece/Pieces
Delivery Time: 10 Days

Contact Now Add to Basket

  • Basic Info
  • Product Description
  • Email
Basic Info

Model No.: 5 PP Capsule Filter Disposable Lab

Nominal Length: 2.5”/112mm; 5”/196mm: Nominal Length: 2.5"/112mm; 5"/196mm

Additional Info

Packaging: Carton Packing

Productivity: 100000PCS/Year

Brand: QingFeng,OEM

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 100000PCS/Year

Certificate: SGS and ISO9001

HS Code: 8421999090

Port: Shanghai,Shenzhen

Product Description

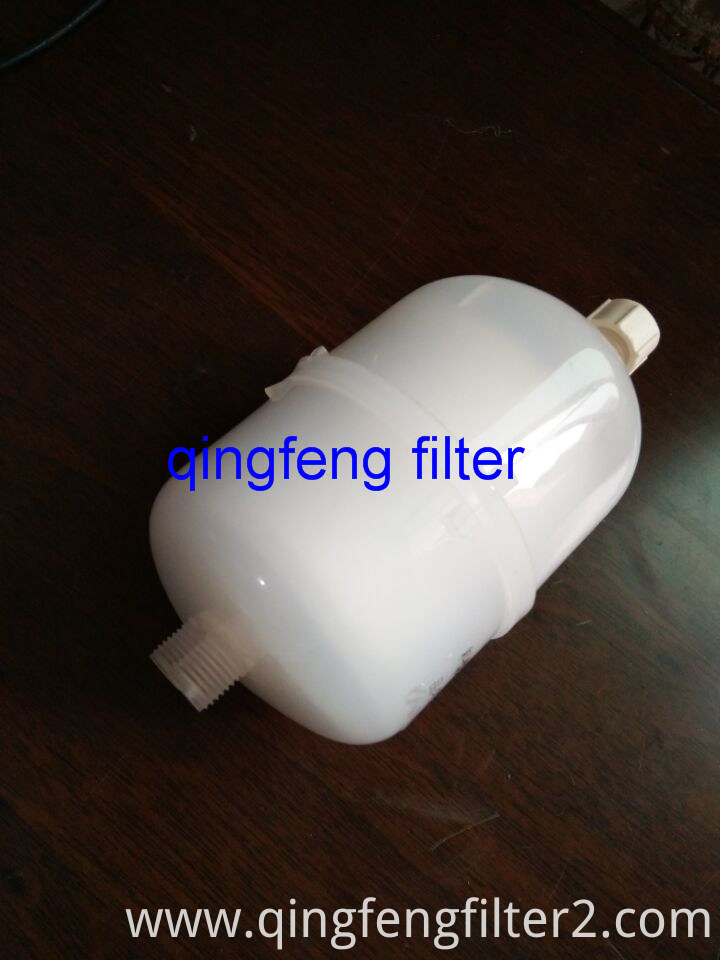

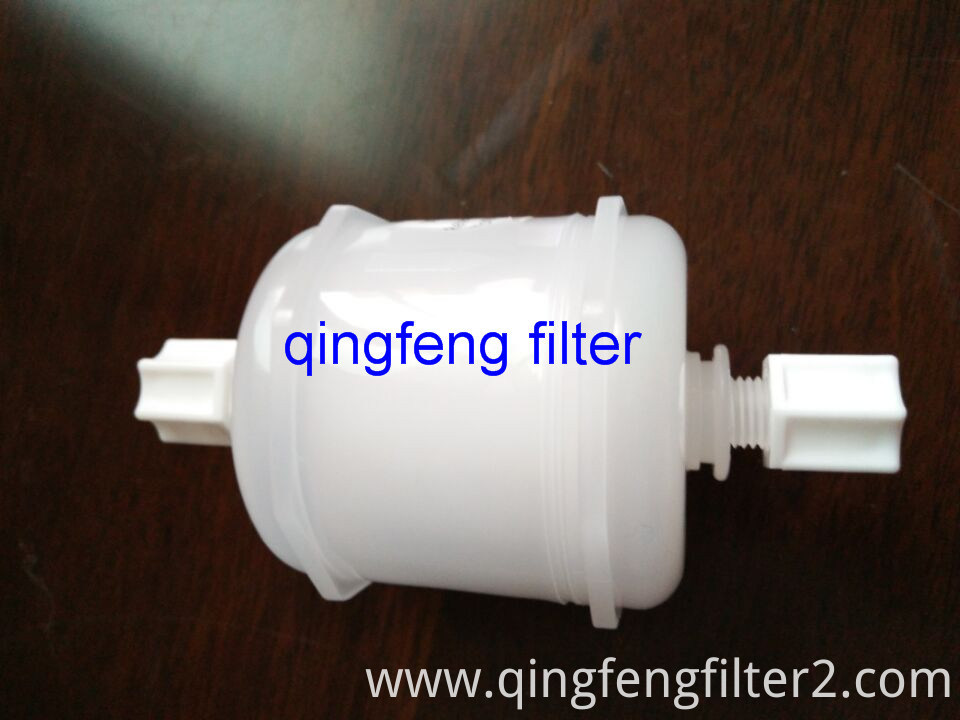

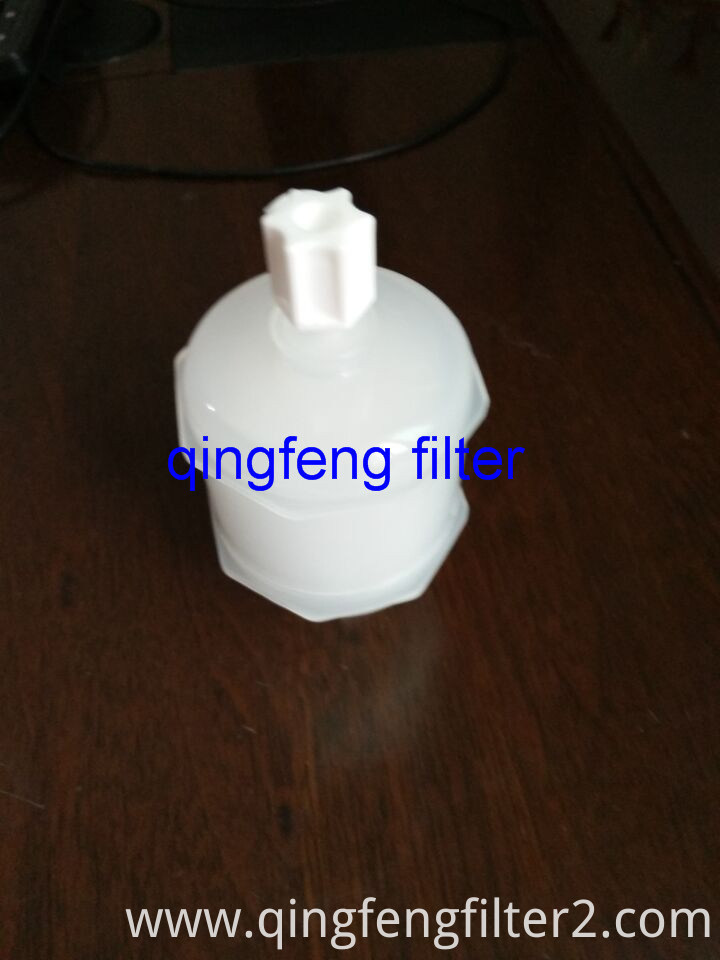

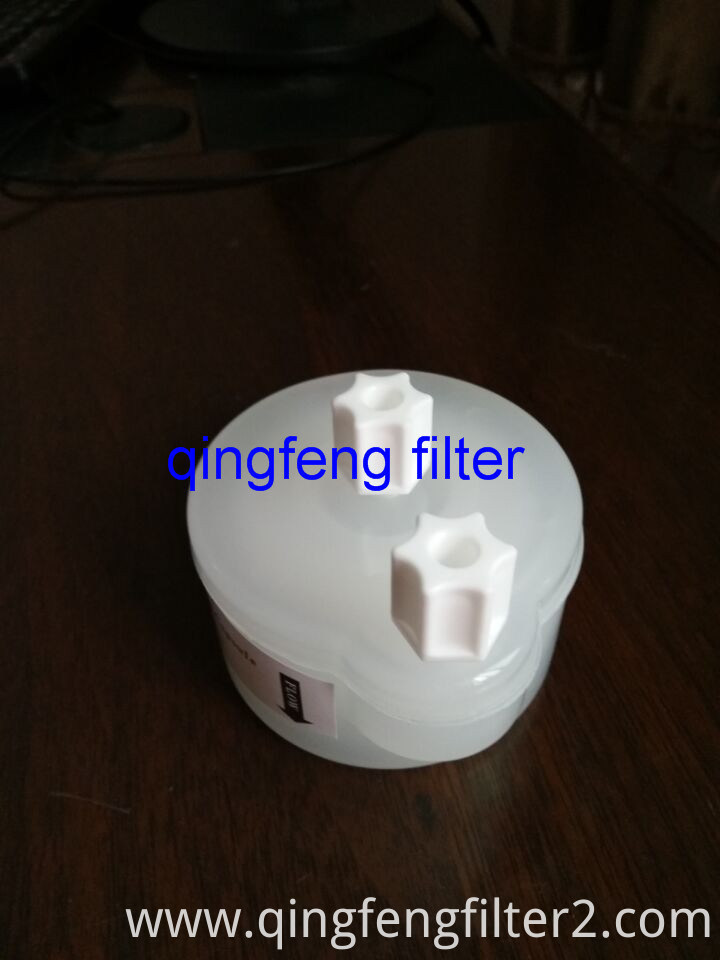

Capsule Filter
Our Disposable Capsule Filters are available in sterile and non-sterile options; they are designed for the removal of particles or bacteria from aqueous or solvent solutions and gas streams. They are ready to use, eliminating the need to disassemble, clean and reassemble filter housings.They have fittings: Inlet/Outlet: 1/2"NPT,1/4"SW; Vent/ Drain: 1/4"SW.
Specifications & Technical data:

Material of Construction
Medium:
PES/Nylon66/PTFE/PP/GF/PVDF
Support & Housing: PP
Removal Rating: Please refer to Ordering Information as attached.
Configurations: Nominal Length: 2.5"/112mm; 5"/196mm
Diameter: ODΦ67
Fittings: Inlet/Outlet: 1/2"NPT,1/4"SW; Vent/ Drain: 1/4"SW
Effective Filter Areas: 2.5" ≥0.14m2
Sealing Quality:
Capsule filters are manufactured to a very high standard of quality assurance and cleanliness. Manufactured in accordance to ISO 9001:2000

Operating Conditions:

• Maximum Temperature:140°F/60°C
• Maximum Forward Differential Pressure :0.42Mpa
• Maximum Reverse Differential Pressure :0.21Mpa

Typical Applications:

1,Chemicals
2,Solvents
3,Coatings
4,Pigment
5,Oil
6,Photoresist
7,Small volume previous chemicals
Materials of Construction
filter media PES/Nylon66/PTFE/PP/GF/PVDF
Support & Housing PP
Sealing technology Thermal Bonding, No Adhesives
Filtration Area, ft 2
≥ 2.2
Pore Size, μm
Please refer to Ordering Information.
Maximum Differential Pressure
Forward: 3.5 bar @ 23°C and 3.0 bar @ 60°C for liquid; 3.0 bar @ 23°Cand 2.5 bar @ 60°C for gas & air.
Sterilization
3 autoclave cycles of 30 min at 123 °C; steam-in-place sterilization not recommendable.
Good Manufacturing Practices
Manufactured in an ANOW facility which adheres to Good Manufacturing Practices.
Inkjet Printer Disposable Lab 5 Micron PP Capsule Filter CartridgeInkjet Printer Disposable Lab 5 Micron PP Capsule Filter CartridgeInkjet Printer Disposable Lab 5 Micron PP Capsule Filter CartridgeInkjet Printer Disposable Lab 5 Micron PP Capsule Filter CartridgeInkjet Printer Disposable Lab 5 Micron PP Capsule Filter Cartridge
Company Profile:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as Filter Membrane, filter cartridges, Filter Housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced Pvdf Membrane. The products and services we offer will provide world class quality.

Inkjet Printer Disposable Lab 5 Micron PP Capsule Filter Cartridge


Looking for ideal Disposable Capsule Filter Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the NPT Capsule Filter are quality guaranteed. We are China Origin Factory of PP Filter Capsule. If you have any question, please feel free to contact us.
