Home > Products > Capsule Filter > PTFE Capsule Filter > 1/2′′ NPT Connections PTFE Capsule Filter

1/2′′ NPT Connections PTFE Capsule Filter
1/2′′ NPT Connections PTFE Capsule Filter
1/2′′ NPT Connections PTFE Capsule Filter
1/2′′ NPT Connections PTFE Capsule Filter
1/2′′ NPT Connections PTFE Capsule Filter

1/2′′ NPT Connections PTFE Capsule Filter

Payment Type: L/C,T/T,D/P,Paypal,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 25 Piece/Pieces
Delivery Time: 10 Days

Contact Now Add to Basket

  • Basic Info
  • Product Description
  • Email
Basic Info

Model No.:  PTFE Capsule Filter

Material: Chemical Fiber

Filtration Grade: Medium Filter

Activated Carbon Filter Type: Bulk Type

Additional Info

Packaging: Carton Packing

Productivity: 100000PCS/Year

Brand: QingFeng,OEM

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 100000PCS/Year

Certificate: SGS and ISO9001

HS Code: 8421999090

Port: Shanghai,Shenzhen

Product Description

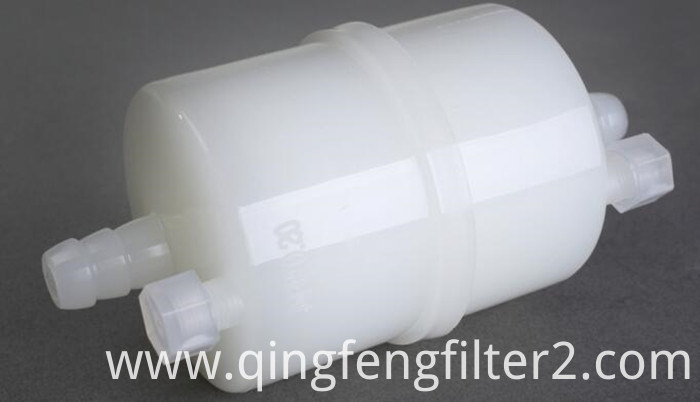

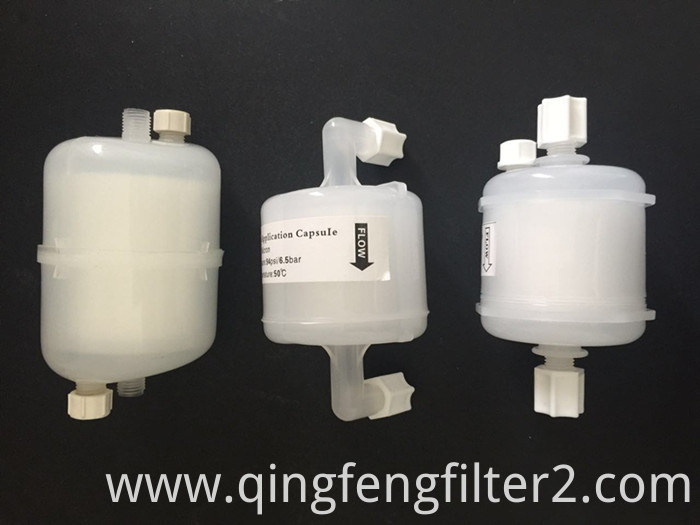

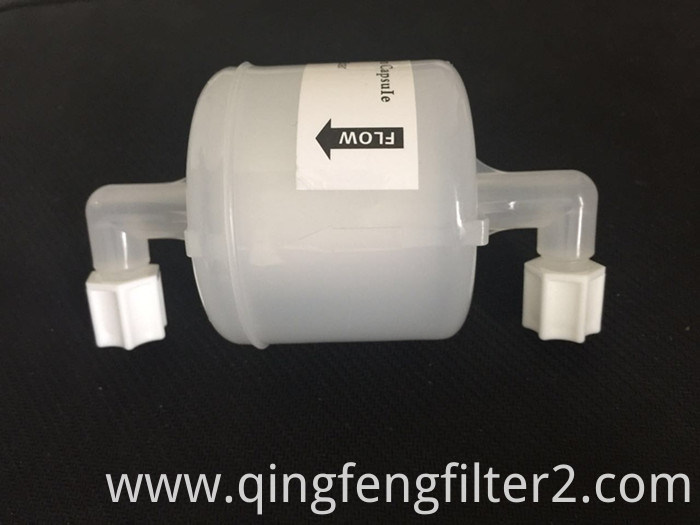

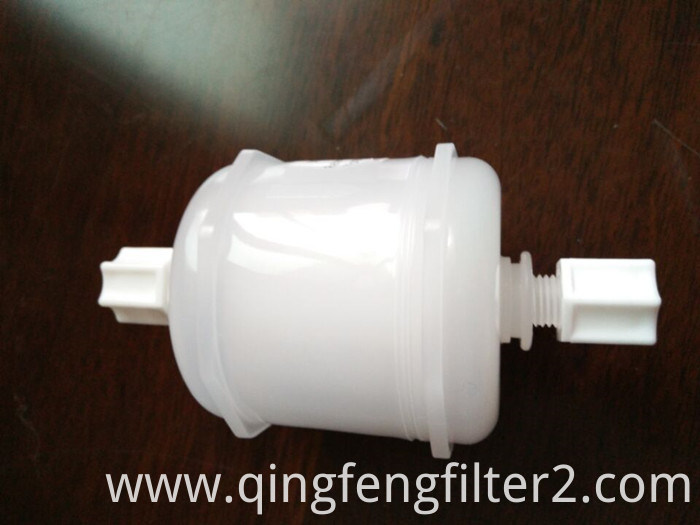

Capsule Filters

Kinds of membrane materials and pore size can be chosen by the customer's requirements, 0.2um PTFE Capsule Filter and etc.Made up of polypropylene cage and pleated Membrane Filter insider by thermal bonding, good integrality, free of surfactants and adhesives.1/2′′ NPT Connections Capsule Filter and 1/4′′ NPT Connections Capsule Filter are available.

Main Characteristics:

Incorporate the full range of filter medias (PP,PS,PF,PV),with the housing out, can be used directly; Ideal for small batch prefiltration and final filtration of liquid or gas in laboratory. Different kinds of connections are for options. Easy to install and convenient to use

PTFE Capsule Filters


Typical Applications:

Ptfe Capsule Filter is with PTFE membrane, high flow rate, can choose filter media with glass fiber to prolong the service life, suitable for large sample volume and something difficult to filter. Widely used in the filtration of pharmaceutical, food and beverage and the filtration of small injection, tissue cultural media and Liquid Filtration.

Available Micron Rating(µm):

PTFE: 0.10 0.20 0.45 1.0

Materials of Construction:

Filter Media:PTFE Membrane

Inner Core: Polypropylene

Outer Core: Polypropylene


Cartridge Dimensions:

Available Length: 2.5" 5"

Effective Filtration Area: 2.5" ≥0.14m3 5" ≥0.28m3

Available Connections: 1/8" NPT; 1/4" NPT; 1/4" CNPT; 1/2" NPT; 9/16" hose barb; 1.5" sanitary flange


Operation Conditions:

Normal Operating Temperature: ≤55ºC

Max. Operating Temperature: 85ºC(△P≤0.10Mpa)

Max. Differential Pressure: Normal Flow direction:4.2 bar at 25ºC

Reverse Flow direction: 2.1 bar at 25ºC


Cartridge Safety:

Endotoxin: <0.50 EU/ml

Extractable: 0.03g/10"

PTFE 1/2'' 1/4'' 1/8'' NPT Connections Capsule Filter for Dyestuff Filtration in CD-R and DVD-R
PTFE 1/2'' 1/4'' 1/8'' NPT Connections Capsule Filter for Dyestuff Filtration in CD-R and DVD-R
PTFE 1/2'' 1/4'' 1/8'' NPT Connections Capsule Filter for Dyestuff Filtration in CD-R and DVD-R
PTFE 1/2'' 1/4'' 1/8'' NPT Connections Capsule Filter for Dyestuff Filtration in CD-R and DVD-R
PTFE 1/2'' 1/4'' 1/8'' NPT Connections Capsule Filter for Dyestuff Filtration in CD-R and DVD-R

PTFE 1/2'' 1/4'' 1/8'' NPT Connections Capsule Filter for Dyestuff Filtration in CD-R and DVD-R

ABOUT US:

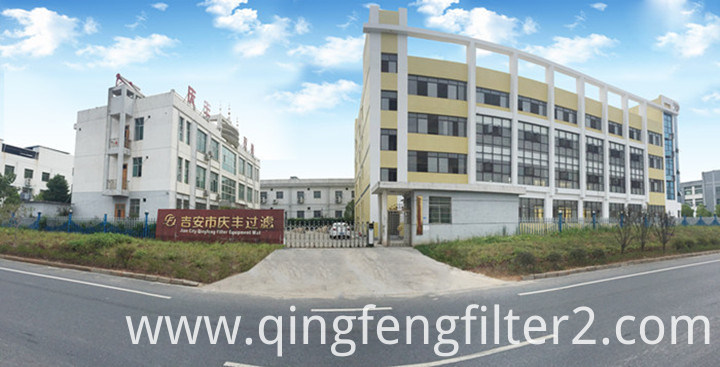

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as Filter Membrane, filter cartridges, Filter Housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced Pvdf Membrane. The products and services we offer will provide world class quality.



Looking for ideal NPT Connections Capsule Filter Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 0.2um PTFE Capsule Filter are quality guaranteed. We are China Origin Factory of Dispensable Capsule Filter. If you have any question, please feel free to contact us.

Product Categories : Capsule Filter > PTFE Capsule Filter
