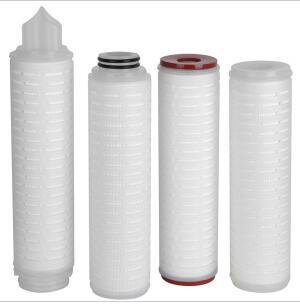

0.1um PTFE Membrane Filter Cartridge for Air Filtration
0.1um PTFE Membrane Filter Cartridge for Air Filtration
0.1um PTFE Membrane Filter Cartridge for Air Filtration
0.1um PTFE Membrane Filter Cartridge for Air Filtration
0.1um PTFE Membrane Filter Cartridge for Air Filtration

0.1um PTFE Membrane Filter Cartridge for Air Filtration

Payment Type: L/C,T/T,D/P,Paypal,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 25 Piece/Pieces
Delivery Time: 10 Days

Contact Now Add to Basket

  • Basic Info
  • Product Description
  • Email
Basic Info

Model No.: PTFE Membrane Filter Cartridge

Material: Chemical Fiber

Type: Folding Microporous Filter

Filter Connector: 222 Connector, 222/226/Flat/DOE

Filtration Grade: HEPA Filter

Activated Carbon Filter Type: Compact

Certificate: ISO9001 & SGS

Additional Info

Packaging: Carton Packing

Productivity: 100000PCS/Year

Brand: QingFeng,OEM

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 100000PCS/Year

Certificate: SGS and ISO9001

HS Code: 8421999090

Port: Shanghai,Shenzhen

Product Description



Ptfe Filter Cartridge
Introduction:

The filtration media of PTFE filter catridge is hydrophobicity Ptfe Filter Membrane, it is constructed of two materials PTEE and PP to meet high standards of chemical and pharmaceutical industry. The benefit summary: strong hydrophobicity, high retention rate, super chemical tolerance and thermal stability, good intension, withstand shocks and back pressure. PTFE filter catridge have passed 100% integrity accord with FDA and chinese Pharmacopoeia.

Specifications:

Filter medium: hydrophobicity PTFE filter membrane
Support layer: PP
Filter cage: PP
Pore size: 0.1, 0.2, 0.45, 1 (um)
Length: 5", 10", 20", 30", 40"
Sealing material: Silastic, NBR, EPDM, Viton
Airtight method: thermal bonding technique
Effective filtration area: >=0.64square meter/10"
Diameter: 68mm
Working temperature: ≤65ºC
Max. operating temperature: 90ºC(P≤0.1Mpa)
Max. bear temperature: 140ºC, 0.27Mpa
Max. positive pressure: 0.42Mpa (23ºC)
PH value: 1--14
Sterilizing: temperature: 121ºC 30min
Others: special requirement of diameter and end caps can be customized

Typical Applications:
Chemical industry; Gas filtration etc.

Materials of Construction
Membrane PTFE
Support and Drainage PP
Core, Cage PP
End Caps DOE, SOE (code2, code3, code7, code8)
O-rings/Gasket Silicone/EPDM/Viton/TEV
Sealing Technology Thermal Bonding, No Adhesives
Dimensions
Diameter Φ68
Length 5 inch, 10 inch, 20 inch, 30 inch, 40 inch
Filtration Area, ft 2
≥ 6.4 per 10-inch element
Pore Size, μm
0.01 (for gas),0.1, 0.2, 0.45, 1 (um)
Maximum Differential Pressure
Forward: 4.2 bar @ 23 C
Nitrogen Flow Rate & Pressure Drop , per 10-inch cartridge
≥ 60 m 3 /h at 0.1 bar with 0 bar outlet pressure
≥ 120 m 3 /h at 0.1 bar with 2 bar outlet pressure
Integrity Test - at 23 C
Bubble point ≥ 1100 mbar with 60/40% IPA/water
HydroCorr (water intrusion test) ≤ 0.75mL/min per 10-inch cartridge with water at 2620mbar

0.01 Micron PTFE Membrane Filter Cartridge for Air Filtration0.01 Micron PTFE Membrane Filter Cartridge for Air Filtration

0.01 Micron PTFE Membrane Filter Cartridge for Air Filtration
0.01 Micron PTFE Membrane Filter Cartridge for Air Filtration
Company Profile:

QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as Filter Membrane, filter cartridges, Filter Housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced Pvdf Membrane. The products and services we offer will provide world class quality.



Looking for ideal 10 Pleated Sediment Filter Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the PP Cartridge Filters are quality guaranteed. We are China Origin Factory of Spun Cartridge Filter. If you have any question, please feel free to contact us.
