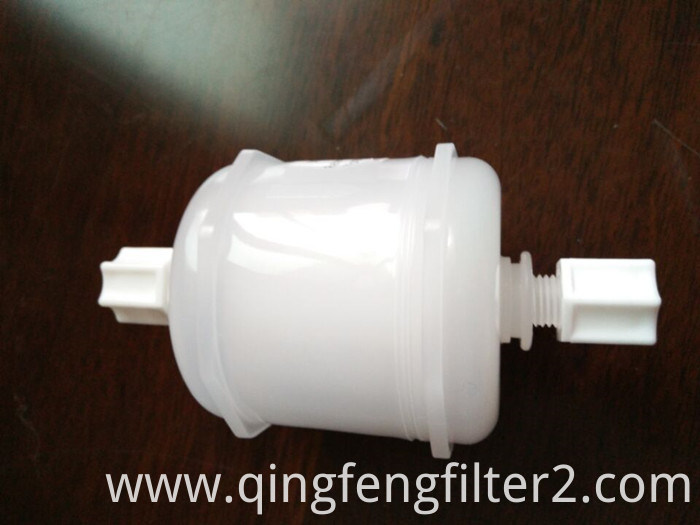

0.2um PVDF Membrane 2.5′′ Capsule Filter
0.2um PVDF Membrane 2.5′′ Capsule Filter
0.2um PVDF Membrane 2.5′′ Capsule Filter
0.2um PVDF Membrane 2.5′′ Capsule Filter
0.2um PVDF Membrane 2.5′′ Capsule Filter

0.2um PVDF Membrane 2.5′′ Capsule Filter

Payment Type: L/C,T/T,D/P,Paypal,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 25 Piece/Pieces
Delivery Time: 10 Days

Contact Now Add to Basket

  • Basic Info
  • Product Description
  • Email
Basic Info

Model No.: PVDF Micron Membrane Capsule Filter

Material: Chemical Fiber

Type: Air Filter

Filtration Grade: PRE Filter

Activated Carbon Filter Type: Bulk Type

Additional Info

Packaging: Carton Packing

Productivity: 100000PCS/Year

Brand: QingFeng,OEM

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 100000PCS/Year

Certificate: SGS and ISO9001

HS Code: 8421999090

Port: Shanghai,Shenzhen

Product Description



PVDF Capsule Filters:


Typical Applications:

PVDF Capsule Filter is with Pvdf Membrane, high flow rate, can choose filter media with glass fiber to prolong the service life, suitable for large sample volume and something difficult to filter. Widely used in the filtration of pharmaceutical, food and beverage and the filtration of small injection, tissue cultural media and Liquid Filtration.

Available Micron Rating(µm):

PVDF: 0.10 0.20 0.45 1.0

Materials of Construction:

Filter Media:PVDF Membrane

Inner Core: Polypropylene

Outer Core: Polypropylene


Cartridge Dimensions:

Available Length: 2.5" 5"

Effective Filtration Area: 2.5" ≥0.14m3 5" ≥0.28m3

Available Connections: 1/8" NPT; 1/4" NPT; 1/4" CNPT; 1/2" NPT; 9/16" hose barb; 1.5" sanitary flange


Operation Conditions:

Normal Operating Temperature: ≤55ºC

Max. Operating Temperature: 85ºC(△P≤0.10Mpa)

Max. Differential Pressure: Normal Flow direction:4.2 bar at 25ºC

Reverse Flow direction: 2.1 bar at 25ºC


Cartridge Safety:

Endotoxin: <0.50 EU/ml

Extractable: 0.03g/10"

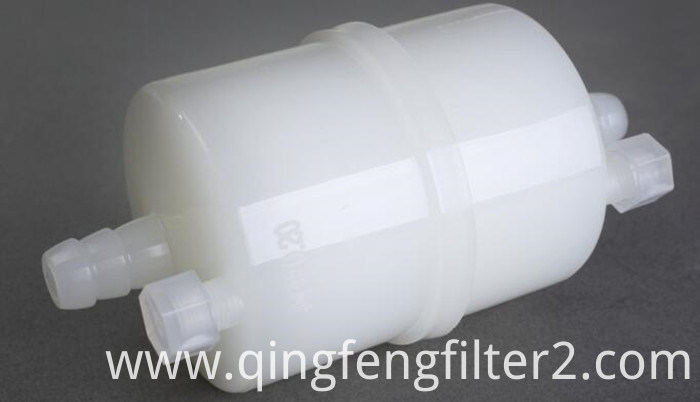

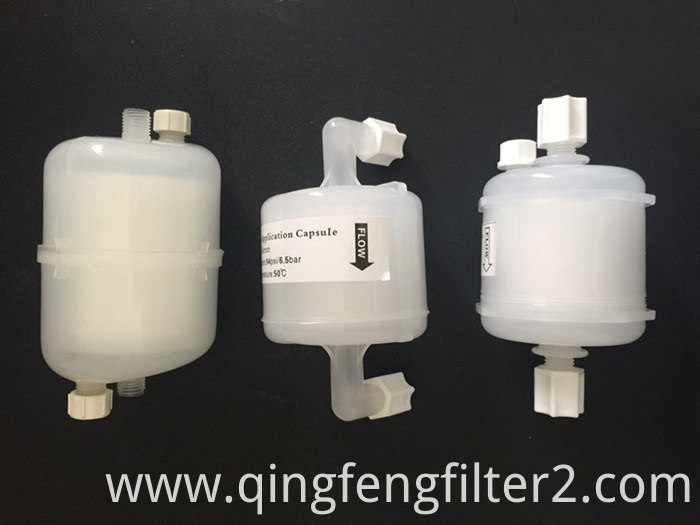

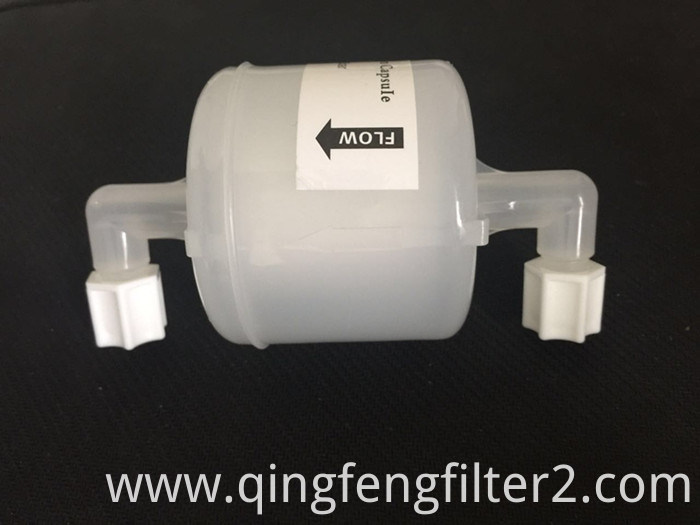

0.2um 0.45um PVDF Membrane 2.5'' 5'' PV Capsule Filter
0.2um 0.45um PVDF Membrane 2.5'' 5'' PV Capsule Filter
0.2um 0.45um PVDF Membrane 2.5'' 5'' PV Capsule Filter
0.2um 0.45um PVDF Membrane 2.5'' 5'' PV Capsule Filter
0.2um 0.45um PVDF Membrane 2.5'' 5'' PV Capsule Filter

0.2um 0.45um PVDF Membrane 2.5'' 5'' PV Capsule Filter

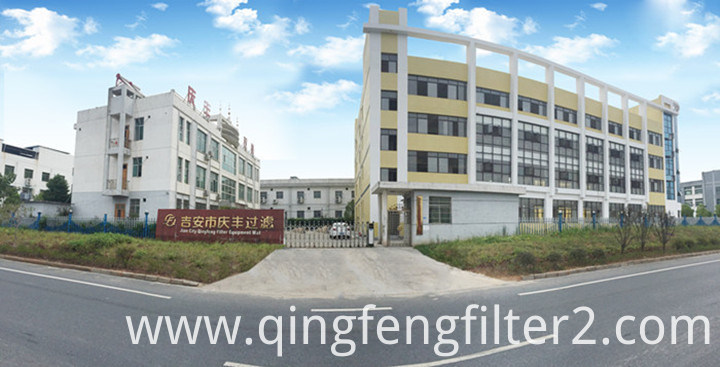

ABOUT US:


QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as Filter Membrane, filter cartridges, Filter Housing.

Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator). And our factory also the domestic leading technical level in producing reinforced PVDF membrane. The products and services we offer will provide world class quality.



Looking for ideal 2.5''Pvdf Membrane Capsule Filter Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Capsule Filter Millipore are quality guaranteed. We are China Origin Factory of Laboratory Gas Filtratiom. If you have any question, please feel free to contact us.
