Hydrophobic PVDF Filter Membrane in Roll
Hydrophobic PVDF Filter Membrane in Roll
Hydrophobic PVDF Filter Membrane in Roll
Hydrophobic PVDF Filter Membrane in Roll

Hydrophobic PVDF Filter Membrane in Roll

Payment Type: L/C,T/T,D/P,Paypal,Western Union
Incoterm: FOB,CFR,CIF,EXW,FCA,CPT,CIP
Min. Order: 10 Square Meter
Delivery Time: 10 Days

Contact Now Add to Basket

  • Basic Info
  • Product Description
  • Email
Basic Info

Model No.: Hydrophobic PVDF Filter Membrane in Roll

Additional Info

Packaging: Carton Packing

Productivity: 200000square Meter/Year

Brand: QingFeng,OEM

Transportation: Ocean,Land,Air

Place of Origin: china

Supply Ability: 200000square Meter/Year

Certificate: SGS and ISO9001

HS Code: 8421999090

Port: Shanghai,Shenzhen

Product Description


Pvdf Filter Membrane Characteristics:
1.Superior corrosion resistance, applies to filtration for the solution of solvent and acid etc.
2.Superior temperature tolerance and anti-pollution
3.Two types, hydrophobic and modified-hydrophobic Filter Membrane

Pvdf Filter Membrane Applications:
1.Effective filtration of organic solvent and additive
2.Ultimate filtration of ink
3.Filtration of solvent and chemical materials
4.Aspetic treatment for reagent
5.Filtration of high-temperature liquid
6.Dust-filtration of air and gas
7.Aseptic filtration of gas and vapor

Sterilization Methods:

Non-sterilization packaging; sterilization under high temperature and pressure (121°C/30min)

Specifications:
1.Pore size (um): 0.10,0.22, 0.45, 1.0, 3.0,5.0um
2.Configuration size (um)
Roundel: Φ13,Φ25,Φ35,Φ47,Φ50,Φ60,Φ70,Φ80,Φ90,Φ100,Φ142,Φ150,Φ200,Φ300,Φ400
Rectangle: custom-built
Rolling Film: custom-built,Width : 280,315,317,320,326,420mm

Filter Membrane Hydrophobic Polyvinylidene (PVDF)
Color White
Thickness, μm 90~100
Width 280,315,317,320,326,420mm
Pore Size, μm 0.1, 0.22, 0.45, 1.0, 3.0, 5.0
Absorption, 0.22 μm 8 μg/cm 2 γ-globulin
Maximum Operating Pressure Forward: 4.2 bar @ 23 ºC; 1.5 bar @ 85 ºC
Flow Rate
0.22 μm ≥ 3 mL/min/cm 2 at 1 bar
0.45 μm ≥ 7 mL/min/cm 2 at 1 bar
Particle Removal Efficiency (%)
> 98
Hydrophobic PVDF Filter Membrane for Air and Gas Filtration in Roll

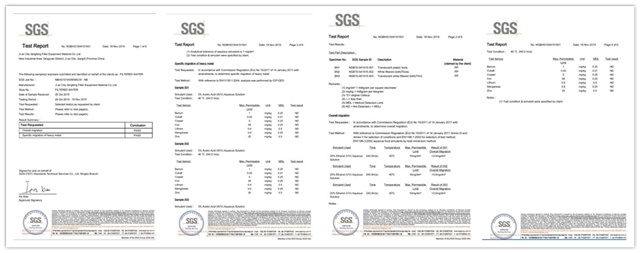

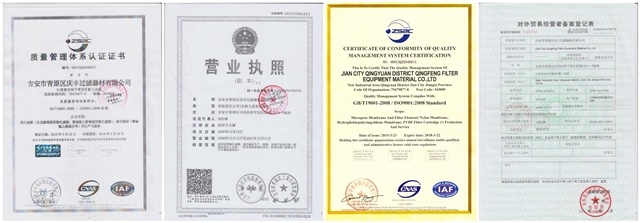

Certificates:
Hydrophobic PVDF Filter Membrane for Air and Gas Filtration in Roll
Hydrophobic PVDF Filter Membrane for Air and Gas Filtration in Roll
Company Profile:


QingFeng Filter Equipment Co., Ltd ,located in new industrial park, QingYuan area, Ji'an Jiangxi Province, is a manufacturer in inustrial filtration and separation region , producing and marketing microfiltration products for pharmaceutical, food and beverage, chemical and electronic industries and other related liquid and gas filtration industries, such as filter membrane, Filter Cartridge, Filter Housing.
Our factory has a full set of filter technology and filter production equipment (include quality monitoring equipment) which is imported from Japan. At the meantime, Our factory adhering to the technology advantage of CN-CA reinforced membrane( the important new product of 85 national torch plan) And Nylon reinforced membrane(the first Nylon creator).And our factory also the domestic leading technical level in producing reinforced Pvdf Membrane. The products and services we offer will provide world class quality.


Hydrophobic PVDF Filter Membrane for Air and Gas Filtration in Roll
Hydrophobic PVDF Filter Membrane for Air and Gas Filtration in Roll

Looking for ideal Microfiltration Membrane Price Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the 0.2 Micron Filter are quality guaranteed. We are China Origin Factory of Membrane in Roll. If you have any question, please feel free to contact us.
